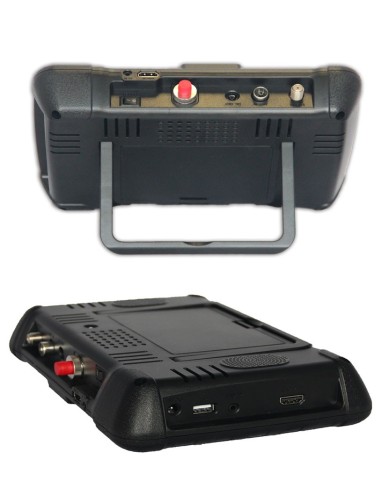

Satlink 6980 Profesional DVB-S2/T2/C
• 7 Inch High Definition TFT LCD Screen
• Fully DVB-S/S2/T/T2/C, MPEG-2/MPEG-4 compliant
• MPEG-2 / H.264 Hardware decoding
• Digital meter for signal strength and quality
• Constellation analyzer
• Spectrum analyzer
• Supports scan of Auto,Blind, Manual or NIT
• Sound and Light Alarm for Locking Signal
• Auto Calculate Angle of AZ ,EL
• Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
• Speaker Integrated
• Support both AV out and AV in
• Support both HDMI out and HDMI in
• Support compass function
• Optical Power measurement
• LNB short protect
• 7.4V/3000mAh Li‐Ion Battery Included
• Software upgrade via USB port
• Easy to carry
|
TRANSMISSION STANDARDS
|
|
DVB-S2/S, DVBT/T2, DVB-C
|
|
SATELLITE INPUT/DEMODULATION
|
|
Connector Type
|
F Type
|
|
Input Frequency
|
950 to 2150 MHz
|
|
Signal Input Level
|
- 65 to -25 dBm
|
|
Band Switch Control
|
22KHz
|
|
LNB Supply
|
13V/18V, IMax 400mA
|
|
Demodulation Type
|
QPSK,8PSK,16APSK
|
|
Symbol Rate
|
2<Rs<45Mband(SCPC/MCPC)
|
|
DVB-T/T2/C INPUT/DEMODULATION
|
|
Connector Type
|
Female Type
|
|
Input Frequency
|
48 to 862 MHz
|
|
Signal Input Level
|
-79.5dBm (MAX)
|
|
ANT Supply
|
5V, 12V/24V Imax 100mA
|
|
Demodulation Type
|
QPSK,16QAM.64QAM,256QAM
|
|
LCD FEATURES
|
|
LCD Type
|
TFT Transmissive
|
|
Number of Dots
|
800 x 3(RGB) x 480
|
|
Active area (WxH)
|
154.08 x 85.92 mm2
|
|
AV output interface
|
|
Connector Type
|
3.5 mm jack
|
|
Video Output
|
CVBS
|
|
Audio Output
|
Stereo Audio L/R output
|
|
HDMI output connecter
|
|
Format
|
HDMI 1.3a
|
|
AV input interface
|
|
Connector Type
|
3.5 mm jack
|
|
Video Input
|
CVBS
|
|
Audio Input
|
Stereo Audio L/R input
|
|
AUDIO/VIDEO PROCESSING
|
|
Video decompression
|
MPEG‐2 MP@HL, MPEG‐1Decoding,MPEG‐4 ASP@L5 HD resolution,
H.264 MP&HP@L4,HW JPEG decoding
|
|
Resolving rate
|
PAL‐25 frame@720*576,NTSC‐30frame@720*480
|
|
Signal compatibility
|
Support conversion for different videoformats
|
|
Video Format
|
4:3,16:9,By Pan & Scan and Letter Boxconversion
|
|
Audio Decompression
|
MPEG‐1 Layer I/II, MPEG‐2 Layer I/II
|
|
Audio Output Mode
|
Stereo, Mono,R/L
|
|
DATA SERVICE PORT
|
|
Connector
|
USB
|
|
Data Protocol
|
USB2.0 interface
|
|
File Management System
|
NTFS,FAT32,FAT16
|
|
File Format
|
wma,mp3,mp4,avi,jpg,jpeg,bmp,img
|
|
MICROPROCESSOR
|
|
Microprocessor
|
NOVATEK
|
|
Clock Frequency
|
500MHz
|
|
SDRAM Memory
|
1Gbit DDR3
|
|
POWER SUPPLY
|
|
Li‐Ion Battery
|
7.4V/3000mAh(The machine behindlabelingshall prevail)
|
|
Adapter
|
OUTPUT :DC12V/1.5A,INTUPT:100~240VAC 50/60Hz
(Willbe subject to actual configuration)
|
|
Power Consumption
|
Max. 10W
|
|
PHYSICAL CHARACERSTICS
|
|
Size (W x D x H)
|
25 x 15.6 x 4 (cm3)
|
|
Net Weight
|
1kg
|
