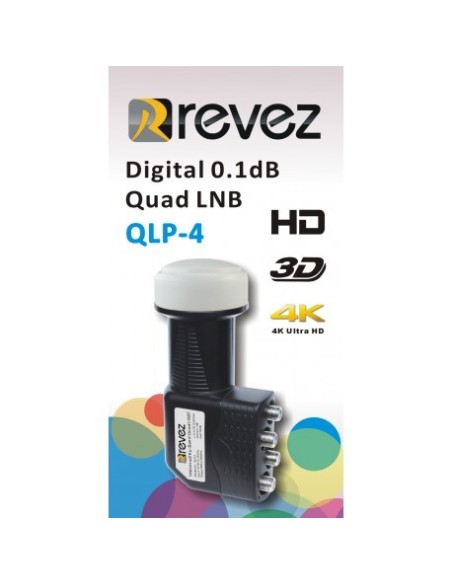

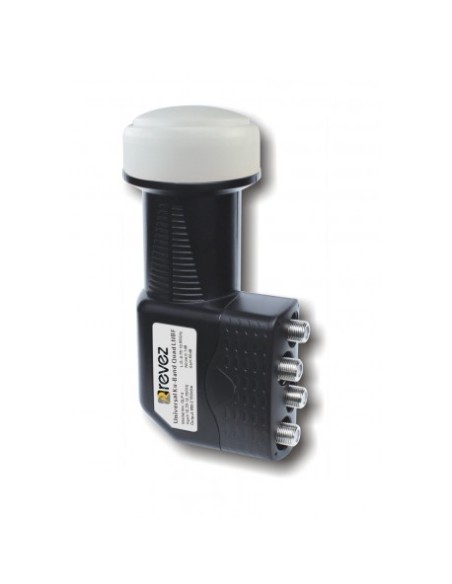

LNB QUAD REVEZ - QLP-4 - 0,1dB

Name: LNB QUAD REVEZ - QLP-4 - 0,1dB
Brand: Revez
SKU: 659
Price: 39 EUR
Availability: InStock

LNB 4 Salidas QUAD REVEZ HD - 3D - 4K - 60dB

Precio final

39,00 €

Impuestos incluidos Entrega en 24h (Baleares 48/72h)

Revez Premium Quad Output LNB 0.1dB

- 4K Ultra HD Supported

Item	Specification
Input Frequency Range	Low Band:10.70~11.70GHz High Band:11.70~12.75GHz
Output Frequency Range	Low Band:950~1950MHz High Band:1100~2150MHz
Noise Figure	0.1dB
Conversion Gain	60dB(Typ.)
Gain Flatness	±0.5dB/26MHz
Cross POL. Isolation	25dB(Typ.)
L.O. Frequency	Low Band:9.75GHz High Band:10.60GHz
L.O. Frequency Stability	±1.0MHz(Max.)@+25℃ ±2.0MHz(Max.)@-30℃~+70℃
Operating Temperature	-30℃~+70℃
Item	Specification
L.O. Phase Noise	-50dBc/Hz@1KHz -75dBc/Hz@10KHz -95dBc/Hz@100KHz
Image Rejection	40dB(Min.)
Output VSWR	2.0:1(Max.)
Output Power	0dBm (Min.)(at 1dB gain compression)
Connector Type	75Ω Female Connector
DC Current Consumption	160mA (Typ.)
Low/High Band Switching	Low Band: 0 Hz High Band:22KHz±4KHz
POL. Switching Voltage	10.5~14.0 V @VP 16.0~20.0 V @HP
