GTMEDIA V8 UHD receptor 4K combo, con sintonizador de satélite multistream, sintonizador de TDT y cable. Tiene un diseño único y original que, unido a sus magníficas prestaciones, le convierten en un decodificador con una excelente relación calidad-precio-diseño-prestaciones.


Comprar GTmedia V8 UHD a un precio increíble con el mejor servicio técnico y postventa

Precio final
89,00 €
Entrega en 24h (Baleares 48/72h)



GTmedia V8 UHD



El nuevo GTmedia V8 UHD es un receptor 4K combo, con sintonizador de satélite multistream, sintonizador de TDT y cable. Tiene un diseño único y original que unido a sus magníficas prestaciones le convierten en un decodificador con una excelente relación calidad-precio-diseño-prestaciones.

Resolución 4K y procesadores MIPS74Kf de doble núcleo - DLNA - SAT a IP - WIFI integrado.

Comprar GTmedia V8 UHD a un precio increíble con el mejor servicio técnico y postventa

- Características del GTmedia V8 UHD:

Highlight 1.DVB-S/S2/S2X,DVB+T/T2/ISDB-T/Cable(J83.A/C)/ATSC-C(J83.B);
2.Support  4K ultra-high definition display and decoder, Dual-core MIPS74Kf processors;
3.Support  Multi-format ultra-high definition video decoder;
4.Support Full PowerVu, DRE &Biss key;
5. Support DLNA, SAT To IP;
6.Support  Built-in 2.4G WIFI module, Ethernet.
7.Support  Youtube,Web TV, Xtream ;
8.Support Regional weather.
9.Support Network Sharing Cccam,Newcam,Mgcam.
10.Technical support website : www.freesat.cn
Note: We reserve the right to change the design and OEM/ODM supported

Main Chip Sets Multi-core CPU architecture MIPS 74Kf core operating frequency up to 1GHz, 16KB I-cache, 16KB D-cache and 1 Register File
Flash Memory 64MB SPI Flash
DDR3 Memory 2G bit*2
TS Demux Demultiplexer ISO/IEC 13818-1
Input Bit Rate 2 parallel TS input ports @864Mbps in parallel mode
Video Decode  Video Decode  MPEG-2 ISO/IEC 13818-2 MP@ML, ISO/IEC 14496-2 (MPEG4) compliant, Supports SP@L3 to ASP@L5Multi-format ultra-high definition video decoder (MPEG1/2/4, H.264/265, VC-1, AVS/AVS+, VP8 and VP9)
Video Resolution By Source, 480i,480P,576i,576P,720P_50,720P_60,1080i_25,1080i_30,1080P_25,1080P_24,1080P_30,1080P_50,1080P_60,4K2K_25,4K2K_30,4K2K_50,4K2K_60;
Video DAC 1 x 10bit DAC for CVBS output
Composite NTSC M/N/J, NTSC-4.43
Composite PAL M/N/B/D/G/H/I, PAL-60
Aspect Mode Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
HDMI Video Out Auto, RGB-Normal, RGB-Expand, YCbCr 4:4:4, YCbCr 4:2:2
HDMI deep color Auto, Normal, None, HDMI deepcolor 24, HDMI deepcolor 36
Audio Decode Audio Decode MPEG-1/2 Layer I/II, AAC/HEAAC v1/v2, Dolby Digital (AC3),Dolby Digital Plus (EAC3),RealAudio,WMA/WMA Pro,MP3,OGG,APE,FLAC,ALAC
Sound Mode  LEFT/RIGHT/STEREO/MONO
Audio DAC Supports 2 channels, 16-bit resolution and 8k-192k sample rate,
Audio Out LPCM Out, BS Out

Hardware specifications Panel display 8-digit white LED display,With multiple function indicators
LED Indicator Power ON :Green; Standby :Red
Button NOT
Wifi Built in 2.4G WiFi  Support IEEE 802.1.1b/g/n
IR Exit IR for 38KHz,Infra Remote control

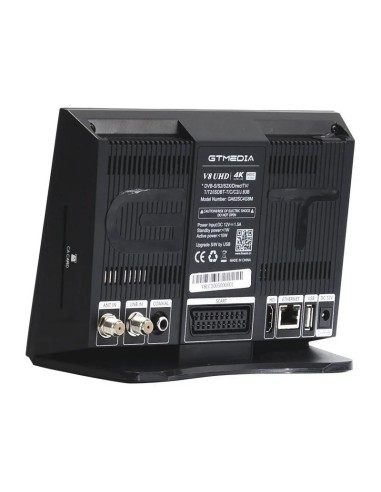

Rear Panel ANT IN   ( EC-type IEC169-2 Female)
LNB IN  (Frequency Range950MHz to 2150MHz)
HD OUT(HDMI2.0, up to 4kx2kp50/60 output )
SCART OUT
1*Coaxial (RCA:black)
1*USB2.0 HOST
1*RJ45 (For 10M/100M MAC)
1*CA card solt
DC IN (DC12V/1.5A)

DVB-S/S2  specificati-ons System standard ETS 302 307
Frequency Range 950~2150MHz for DVB-S/S2/S2X baseband demodulator
LNB Power and Polarization DiSEqC1.0/1.1/1.2/USALS Motor fully support,
Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection
Input Level Range  -80dBm ~ -20dBm (average power)
Symbol Rates DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Forward error correction rate  1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Symbol Rates Symbol rate range:
QPSK/8PSK/16APSK 56M, 32APSK 49.6M, 64APSK 41.3M
Roll-off factors Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Code Rates 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2,
DVB-S2X Normal Frame and Short Frame FEC code rates
Features  Supporting CCM/VCM/ACM
Supporting PLHEADER Scrambling (AMC)
Integrating LDPC and BCH decoders
ANT. Connector Connector:IEC TYPE F     Input Impedance:75 Ω
DVB-T/T2 specificati-ons System standard ETSIEN 302 755
Frequency Range VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2
Demodulation COFDM,16QAM,64QAM,256QAM
Bandwidth model 6MHZ,7MHZ and 8MHZ
Country Italy, Poland, Russia, Spanish, Sweden, United Kingdom, Germany,Greek, Slovenia, Argentina, Australia, Denmark, Finland, France, England, Brazil, Chile, Peru, Colombia, India, Georgia, Indonesia.
FEC Code Rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
FFT 2K and 8K
Guard interval 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Input Signal level: Min -80dbm max -20dbm (64QAM,8K 1/8,7/8)
Antenna Power 5V DC @ 150mA MAX
ANT. Connector IEC 169-2, female.   Input Impedance:75 Ω
ISDB-T specificati-ons System standard ISDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX
Frequency Range VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz
Country Brazil and Japan
FFT 2K/ 8K/32K
Demodulation QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC Code Rate 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard interval  1/4,1/8,1/16,1/32
DVB-Cable specificati-ons Frequency Range 50--858MHz For DVB-Cable (J.83A/B/C)
Demodulation 16QAM,32QAM,64QAM,128QAM,256QAM
FEC Code Rate 1/2 , 2/3 , 3/4 , 5/6 , 6/7 or 7/8
Input Signal level Min -80dbm max -20dbm
Country (ATSC-C) U.S.ATSC Cable STD/U.S.ATSC Cable IRC/U.S.ATSC Cable HRC for ATSC-C

Sortware Features Standard Fully comply with DVB-S/S2/S2X (SCPC and MCPC  receivable from C/Ku band satellite), DVB-T/T2/Cable(J83.A/B/C)/ISDBT, MPEG-2/4 H.265 Standard
Channel Search Supports Automatic network search for newly added transponders, and Supports NIT Search for DVB-T/Cable.
Channels Number 6000+ channels TV and Radio programmable
Channel Play Type Can choose All, Free and Scrambled.
Channel You can switch to any other channel while recording the channel;
Various channel editing unction(favorite,move,lock,skip,delete,rename,find,sort);
Favorites 32 different favorite groups selection
OSD Language English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian.
OSD Color 32-bits OSD with anti-flickering,
OSD Setting Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3.
Support menu in the small window to play programs
Other Setting Sets up multiple habitual operation Settings
Parental Ctrl Parental control for channels
Easy Menu Plug and Play installation, with an easy to use Menu System
EPG Fully support to 7 days Electronic Program Guide(EPG)
Subtitle support DVB EN300743 and EBU
Teletext support DVB ETS300472 by VBI
Auto Standby Can open STB to enter play auto standby.
SoftUpgrade Software upgrades through USB port, or FTP upgrade.
Time Set Time set by GMT offset automatic and manual,Summer Time support
Timer 8 event timers,off/Once/Daily Mode

USB Decode USB 2.0 Support FAT/FAT32/NTFS big capacity hard disk
PVR Option USB 2.0 for PVR,TIMESHIFT,media files playback
Media Codec TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
Audio Codec WMA,MP3
Photo Codec JPG, BMP, PNG, GIF

Packing Product Dimension 205*80*140MML*W*H
Packaged Size 205*150*88MM
Carton Size  510*460*305mm  (20pcs/ctn)
Unit Weight 0.75 Kg with gift box
Carton Qty&Weight 20 pcs/Carton, 15.5 kgs
Accessories Gift Box, Adapter, IR remote control, HDMI Cable, User Manual,Warranty card

Physicals Power Supply AC 100V 250V, 50/60Hz
Power Consumption 12W in operation
1 W Standby Power Mode
Temperature Operation 0+45; Storage -10~+60
Humidity 20~90%, non-condensed
