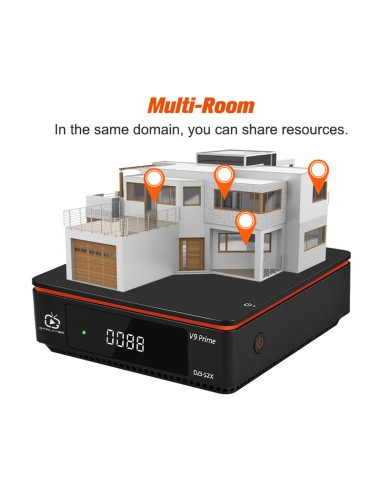

GTMedia V9 Prime
GTMedia V9 Prime
Receptor de satélite DVB-S2X GTmedia V9 Prime. H.265 y wifi integrado.
Comprar GTMedia V9 Prime a un precio increíble con el mejor servicio técnico y postventa
GTMedia V9 Prime
Receptor de satélite DVB-S2X GTmedia V9 Prime. H.265 y wifi integrado.
Comprar GTMedia V9 Prime a un precio increíble con el mejor servicio técnico y postventa
Características principales del GTMedia V9 Prime | 1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream/T2-MI, HEVC main 10 profile, AVS+ | ||||||
2.Support BISS auto roll, Full PowerVu, DRE &Biss key; | |||||||
3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support; | |||||||
4.Support SAT2IP by GTShare APK, DLNA; | |||||||
5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G/4G usb dongle; | |||||||
6.Support Online Movie (Youtube,Youporn,Hotstar), WebTV; | |||||||
7.Support IPTV (Customize, xtream, stalker); | |||||||
Chipsets principales | CPU | 770MHz Dual Core | |||||
Flash Memory | 64MB SPI Flash | ||||||
DDR3 Memory | 1G bit RAM | ||||||
TS Demux | Demultiplexer | ISO/IEC 13818-1 | |||||
Input Bit Rate | Max 100Mbit/s | ||||||
Decodificación de vídeo del GTMedia V9 Prime | Video Decode | HEVC main profile@level 4.1 and main10 [email protected],High tier MPEG-2 MP@ML H.264 BP,MP&HP@L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile@L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder |
|||||
TV System | Automatic PAL/NTSC conversion | ||||||
Aspect Mode | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | ||||||
Video effects | Standard, Default, Vivid. | ||||||
Video Resolution | 1080P, 1080I, 720P, 576P, 480P, 576I, 480I | ||||||
HDMI Color Space | RGB, YUV422, YUV444, Auto | ||||||
Decodificación de audio | Audio Decode | MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH |
|||||
Sound Mode | LEFT/RIGHT/STEREO/MONO | ||||||
Sampling Frequency | 32KHz,44.1KHz,48KHz | ||||||
Audio Out | LPCM Out, BS Out | ||||||
Hardware del receptor GTMedia V9 Prime | Panel display | 4-digit white LED display (Support function display) | |||||
LED Indicator | Power ON :Green; Standby :Red | ||||||
Button | POWER | ||||||
Wifi | Built in 2.4G WiFi Support IEEE 802.1.1b/g/n | ||||||
IR | Exit IR for 38KHz,Infra Remote control | ||||||
Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz) | ||||||
HD OUT (up to 1080P) | |||||||
AV OUT (3-pin 3.5 mm jack) | |||||||
1*USB HOST | |||||||
1*RJ45 | |||||||
1*CA Card | |||||||
DC IN (DC12V/1.5A) | |||||||
Sintonizador DVB-S/S2 del GTMedia V9 Prime | System standard | ETS 302 307 | |||||
Frequency Range | 950~2150MHz for DVB-S/S2/S2X baseband demodulator | ||||||
LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection |
||||||
Input Level Range | -80dBm ~ -20dBm (average power) | ||||||
Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK |
||||||
Forward error correction rate | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | ||||||
Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | ||||||
Symbol Rates | 2 ~ 90MSPS(Code Rate 1/2) | ||||||
Roll-off factors | Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | ||||||
Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates |
||||||
ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | ||||||
Sortware del GTMedia V9 Prime | Standard | Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard | |||||
Channel Search | Support automatic network search for new added transponders | ||||||
Channels Number | 6000+ channels TV and Radio programmable | ||||||
Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | ||||||
Favorites | 31 different favorite groups selection | ||||||
OSD Language | English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian. | ||||||
OSD Color | 32-bits OSD with anti-flickering | ||||||
OSD Setting | Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3. | ||||||
Other Setting | Sets up multiple habitual operation Settings | ||||||
Parental Ctrl | Parental control for channels | ||||||
Easy Menu | Plug and Play installation, with an easy to use Menu System | ||||||
EPG | Fully support to 7 days Electronic Program Guide(EPG) | ||||||
Subtitle | support DVB EN300743 and EBU | ||||||
Teletext | support DVB ETS300472 by VBI | ||||||
SoftUpgrade | Software upgrades through USB port, or FTP upgrade. | ||||||
Time Set | Time set by GMT offset automatic and manual,Summer Time support | ||||||
Timer | 5 event timers,off/Once/Daily/Weekly Mode | ||||||
Decodificación USB | USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | |||||
PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | ||||||
Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | ||||||
Audio Codec | WMA,MP3 | ||||||
Photo Codec | JPG, BMP, PNG, GIF | ||||||
Contenidodel GTMedia V9 Prime | Product Dimension | 125*125*38MM(L*W*H) | |||||
Packaged Size | 220*160*63MM | ||||||
Carton Size | 460*345*345MM (20pcs/ctn) | ||||||
Unit Weight | 0.63 Kg with gift box | ||||||
Carton Qty&Weight | 20 pcs/Carton, 13 kgs | ||||||
Accessories | Gift Box, Adapter, IR remote control, HDMI Cable, User Manual,Warranty card | ||||||
Características físicas del GTMedia V9 Prime | Power Supply | AC 100V ~250V, 50/60Hz | |||||
Power Consumption | 10W in operation <1 W Standby Power Mode |
||||||
Temperature | Operation 0~+45℃; Storage -10~+60℃ | ||||||
Humidity | 20~90%, non-condensed |
Comprar GTMedia V9 Prime a un precio increíble con el mejor servicio técnico y postventa
