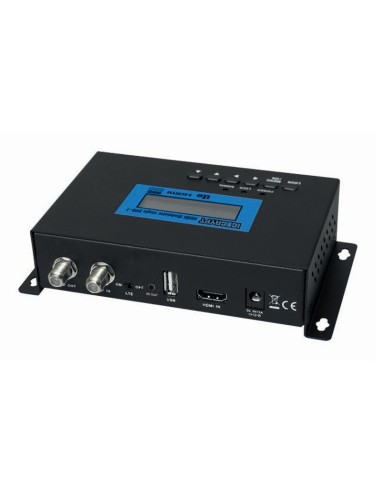

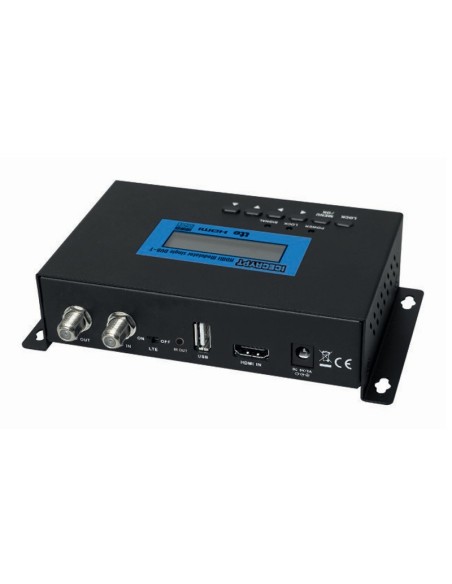

Icecrypt HDM100 HD Modulator con IR
Icecrypt HDM100 HD Modulator con IR
  • -11,00 €
Icecrypt HDM100 HD Modulator con IR
Icecrypt HDM100 HD Modulator con IR

Modulador Icecrypt HDM100 HD con IR

Modulador Icecrypt HDM100 HD con IR

Modulador HDMI HD  High Definition Digital Modulatorith con control IR. Modelo Icecrypt HDM 100. El único del mercado con control IR para cambiar de canal cualquier dispositivo en cualquier estancia modulada.

Comprar Modulador HDMI Icecrypt HDM100 a un precio increíble con el mejor servicio técnico y postventa

Precio final
199,00 € 210,00 € -11,00 €
Impuestos incluidos



Modulador Icecrypt HDM100 HD con IR


Modulador HDMI
HD  High Definition Digital Modulatorith con control IR. Modelo Icecrypt HDM 100.

El único del mercado con control IR para cambiar de canal cualquier dispositivo en cualquier estancia modulada.


Comprar Modulador HDMI Icecrypt HDM100 a un precio increíble con el mejor servicio técnico y postventa


•     Distribute your High Definition pictures to other TVs over your existing coax cabling.
•     Perfect for Sky, Virgin, Freesat, Freeview, CCTV, DVD/BluRay and any other video source with HDMI Output.
•     Remote control IR extender included - control your existing equipment control from a remote location. Compatible with  existing Sky Link remote control systems.
•     TV Must Be MPEG4 Compatible (Full 1080P).
•     Suitable for both domestic and commercial applications with LCN and Variable Output Level.

Included in the box: 1x HDM100 modulator, 1x Power Supply, 1x IR Sensor, 1x IR blaster, 1x IR Injector



ENCODER


Video Encoder  ISO/IEC 11172-2 MPEG1
  ISO/IEC 13818-2 MPEG2
  MP@HL
  ISO/IEC 14496 MPEG4
  Compliant Support SP@L3 to ASP@L5
  ISO/IEC 14496-10AVC
  HP@level 4.1, MP@level 4.1
  H.264 profile 0
  JPEG base-line, progressive
Aspect Ratio  16:9 widescreen, 4:3 Letterbox, 4:3 Pan Scan
  Supports AFD (DTG, MingDTG)
Resolution  Up to 1080p@30FPS
Audio Encoder  MPEG layer 1/2, MPEG2 Layer 2
  AAC LC, HE-AAC v1/v2 (2ch)


MODULATION


Output Frequency Range   VHF III: 174 ~ 233MHz
     UHF: 470 ~ 858 MHz
Output Impedance     75Ω
Input Impedance     75Ω
Forward Error Correction    1/2, 2/3, 3/4, 5/6 and 7/8
Guard Interval     1/4, 1/8, 1/16 and 1/32
Constellations     16QAM and 64QAM
RF Output Level     Default: 90BuV
     Adjustable: 0 to -14dB
                              0 to +6dB
Channel Bandwidth     7MHz (VHF), 8MHz (UHF)
FFT     2K  and 8K
Reed Solomon     202, 188, T=8
Symbol Rate     <31.668MBPS
MER     >35dB at maximum RF level output



MAIN SYSTEM


Main Processor   200MHz 32Bits RISC
Security Processor  200MHz 32Bits
Memory   RAM : DDRII 16Bit 512Mbits
  FLASH : NOR Flash 32MBit



TOP PANEL


RF Input  Impedance:  50Ω
  Input Type: F-Type Female
RF Output  Impedance:  50Ω
  Input Type: F-Type Female
USB Connector  1x USB 2.0 Host
LTE Switch  On/Off (Cut Off Frequency: 790MHz)
HDMI Input  1x HDMI v1.4a, HDCP 1.4
Power DC Input   1x DC (12V, 2A)



FRONT PANEL


Display   128x32 dots OLED Display
LED  Power/Locked/Signal Indicator
Buttons  6 Keys (Left, Right, Up, Down, Lock, Menu)



POWER SUPPLY


Input Voltage   AC 100-240V
Output Voltage  DC 12V/2A
Power Consumption   Max. 10W
PHYSICAL SPECIFICATION
Size (W x H x D)   165mm X 105mm X 36mm
Weight (Net)   0.5KG
Operating Temp.   0°C ~ +45°C
Storage Temp.   -10°C ~ +70°C
EAN  5060086981902





Function Simple Mode Advanced Mode          Default Setting
Channel Freq Number Yes Yes 36
Constellation No Yes 64QAM
FEC No Yes 2/3
FFT No Yes 8k
Guard No Yes 1/32
Channel Name Yes Yes TV-1
RF Level Yes Yes 0dB
LCN Type Yes Yes ITC
LCN Number Yes Yes 99
ONID No Yes 1
TSID No Yes 12294
Network ID No Yes 1
Network Name No Yes ICECRYPT
Network Name No Yes 0
IR 9V Control Yes Yes OFF
Audio Bitrate No Yes 320Kbps suggest use 256Kbps
Audio Format No Yes MPEG-2
Audio PID No Yes 1001
Video PID No Yes 1002
PMT PID No Yes 1003
Service PID No Yes 1000
Video Bitrate No Yes 18000
Resolution No Yes 1920*1080
LED Display control No Yes 18000
Factory Reset No Yes n/a
Save to USB No Yes n/a
Mode switch Control Yes Yes n/a


Comprar Modulador HDMI Icecrypt HDM100 a un precio increíble con el mejor servicio técnico y postventa
